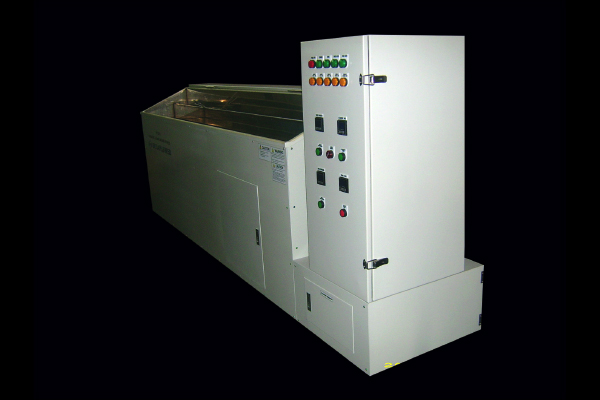

Ultrasonic Cleaning Machine AP-TUD 36


Ultrasonic Cleaning Machine - Cleaning reeds regularly can extend Reed lifetime and increase loom operating efficiency.

Ultrasonic Cleaning Machine APTUD-36 is a modern way of cleaning reeds effectively and efficiently. By utilizing ultrasonic waves instead of contact media, no more problem to cleans difficult part of Reed. Besides Reed, other weaving machinery parts such as sub nozzles and dropper are possible to cleaned by our machine. Eco green feature on loom as one of value added from APTUD-36 have automatic stand by mode when the loom not operated, this advantage will maximize your efficiency during use.


Specification


Length of Tank : 2400 mm & 4000 mm
Total Length : 2400 mm water tank = + 2960 mm; IF 4000 mm water tank = 4560 mm
Width : 600 mm
Height : 1350 mm
Weight : 2400 mm = 300  kg ; 4000 mm = 700 kg
Water capacity : 2400 mm = 125 Litre ; 4000 mm = 210 Litre

Electrical Specification :

Power Supply : 3 phase/ 380 V up to 460 V
Consumption : 5 KW / 25 up to 30 Ampere (or 6 KW / 25 up to 30 Ampere if tank length is more than 3.5 meters)
Frequency : 28 - 40 KHz for Ultrasonic
                   220 V/ 50 ~ 60 Hz for Power Supply





Type

Size

Optional Entry Variation

Please select as needed
