Heald Frame Hook
Heald Frame Hook Used to move heald frame up and down with connector DRC-1 & DRC-2
Simple and small items as a part of Heddle Frame. However, do not underestimate its function, without proper installation and proper spec, it will shorten you Heddle Frame or Side Stay lifetime.

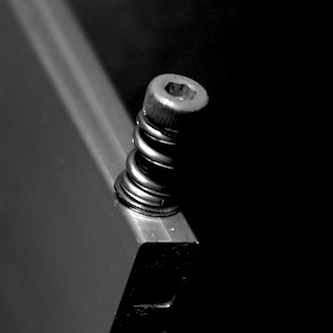

Bolt is to fasten allumunium stave and side stay, have to be strong against vibration
Spring is as a bolt wedge, have to be stong enough to hold the bolt from movement
Ring is used to reduce damage to alumunium stave
Nut is use to make sure that The bolt is tighten, wrong material can be easily broken

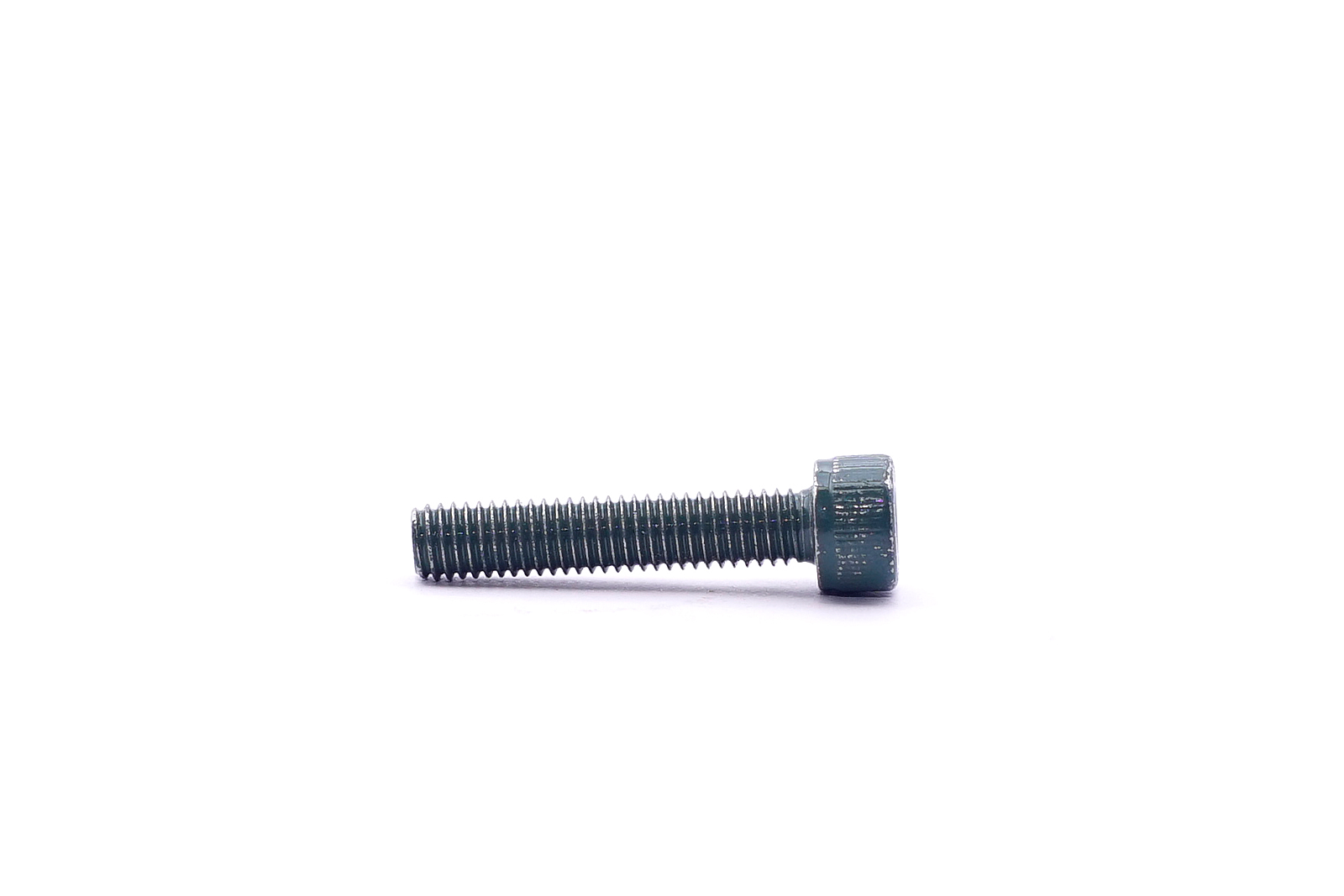

Screw/ Bolt CB-509 : Stainless Material, 5 X 25 X L4

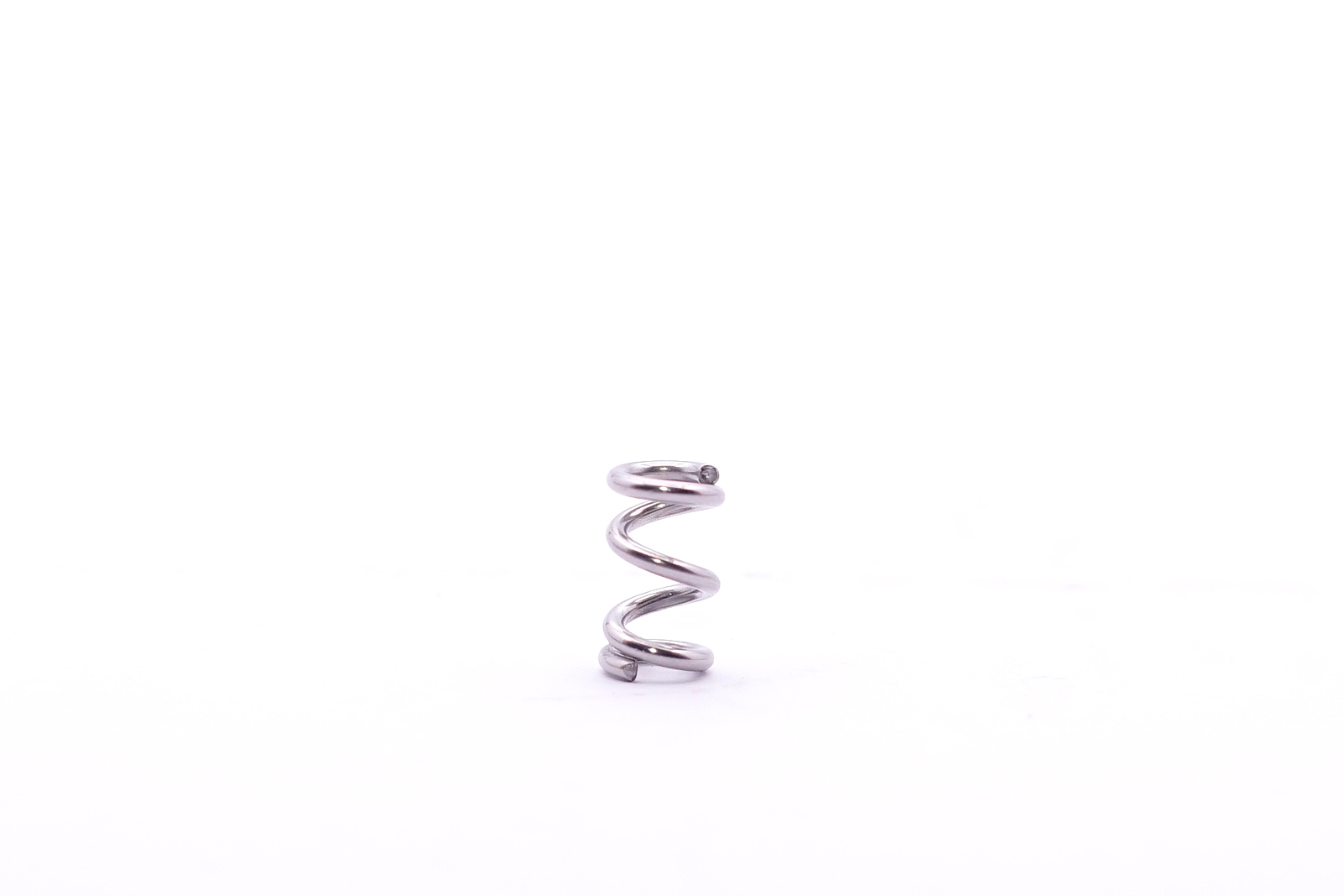

Spring SP-102 : Stainless Material,For WJL/AJL, outer diameter 8.5 mm, inside diamater 5.2 mm, Height 15 mm, thickness 1 mm

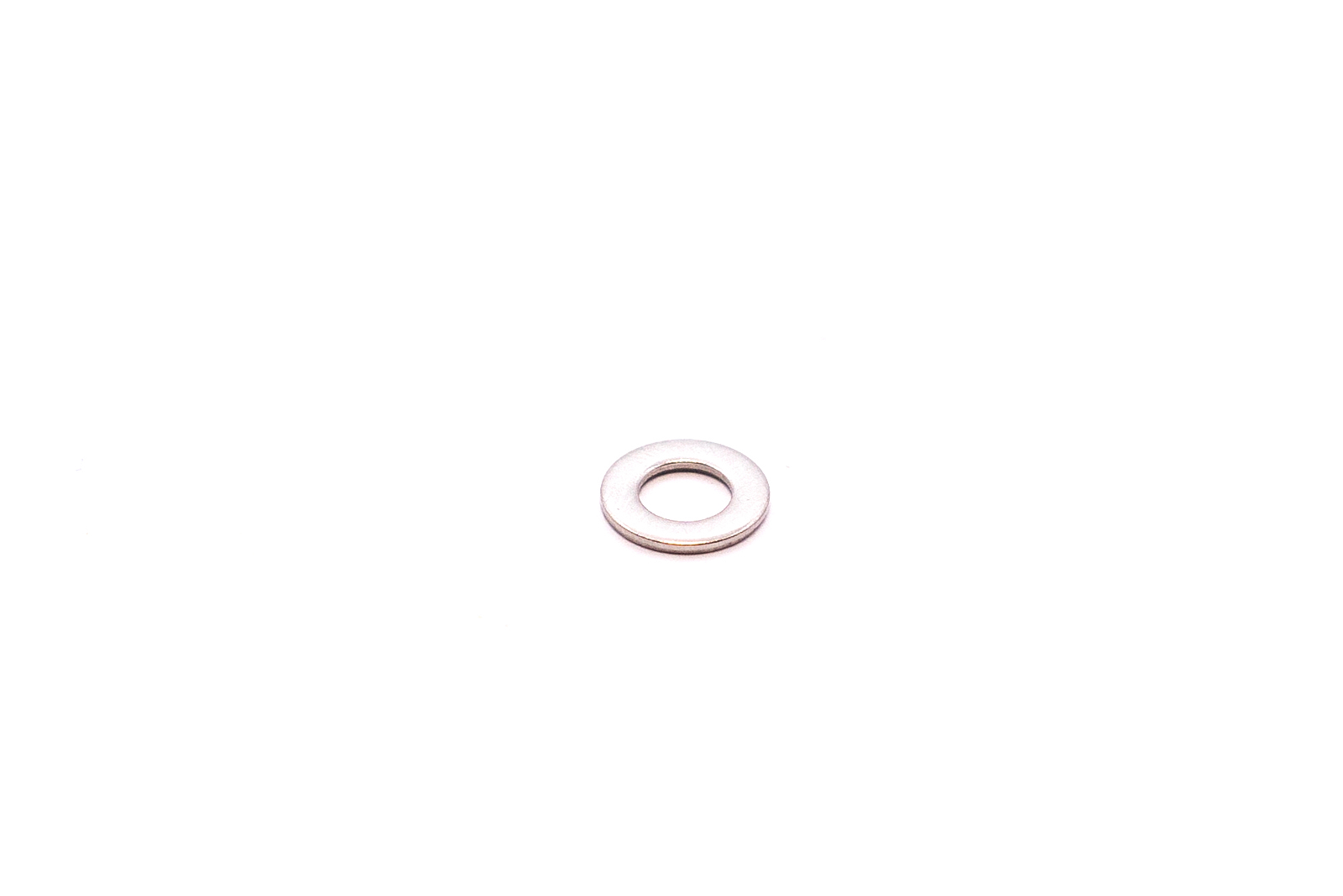

Ring FW-900 : Stainless Material, outside diameter 10 mm, inside material 5.3 mm, thickness 1 mm
RING WASHER FOR WJL : Plastic material FOR WJL, Outer diamater 10 mm, inside diameter 5.3 mm, Thickness 1 mm

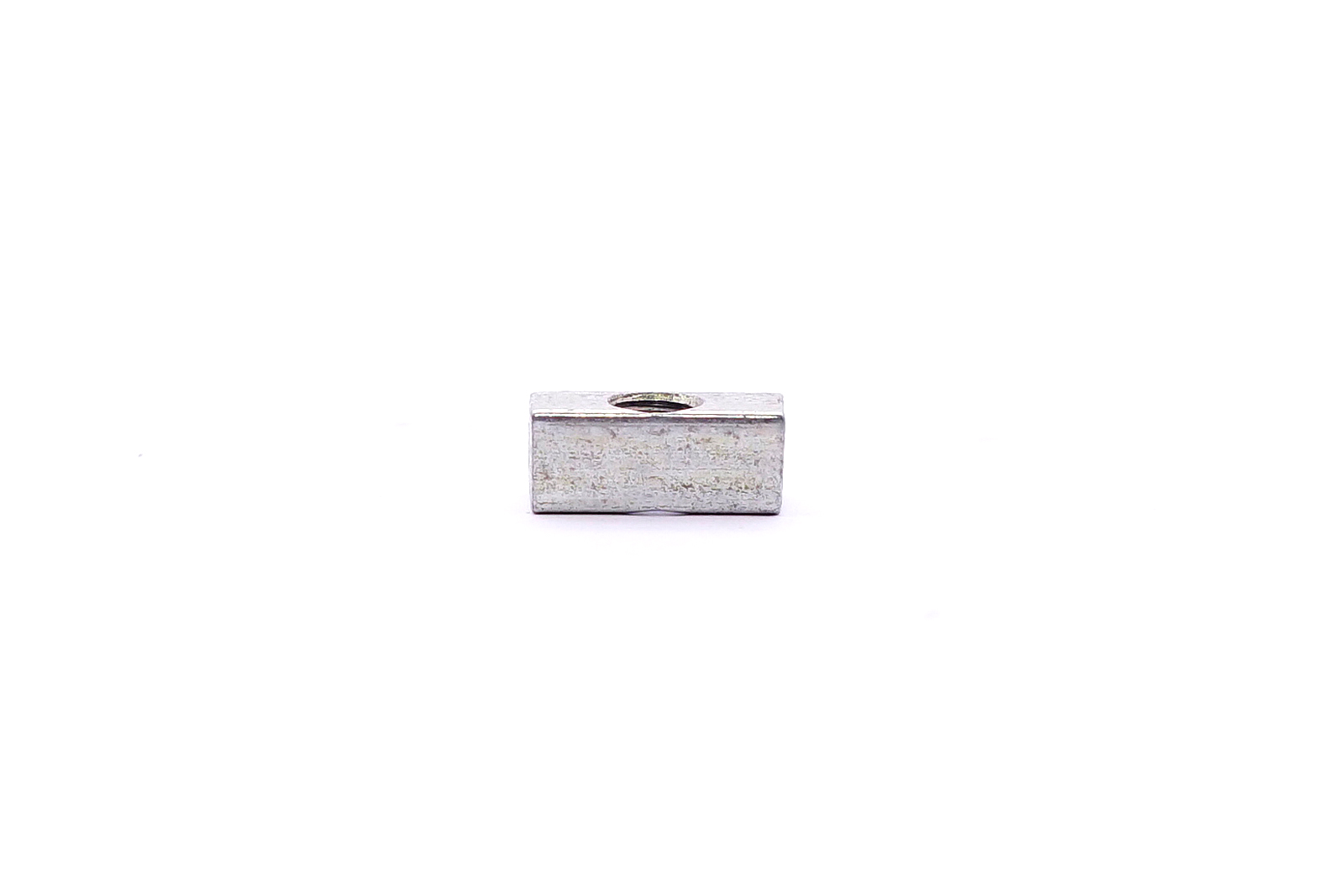

Nut SN-125 : Steel Material in spring ZINC/CHROME, Thickness 6 mm, Width 14mm, Height 6 mm
Heald Frame Hook Used to move heald frame up and down with connector DRC-1 & DRC-2
Heald Frame Full Set Heald Frame Indonesia /Heddle Frame based on shedding motion mechanism
Wire rope for weaving process
Alumunium Frame made for Heddle Frame
