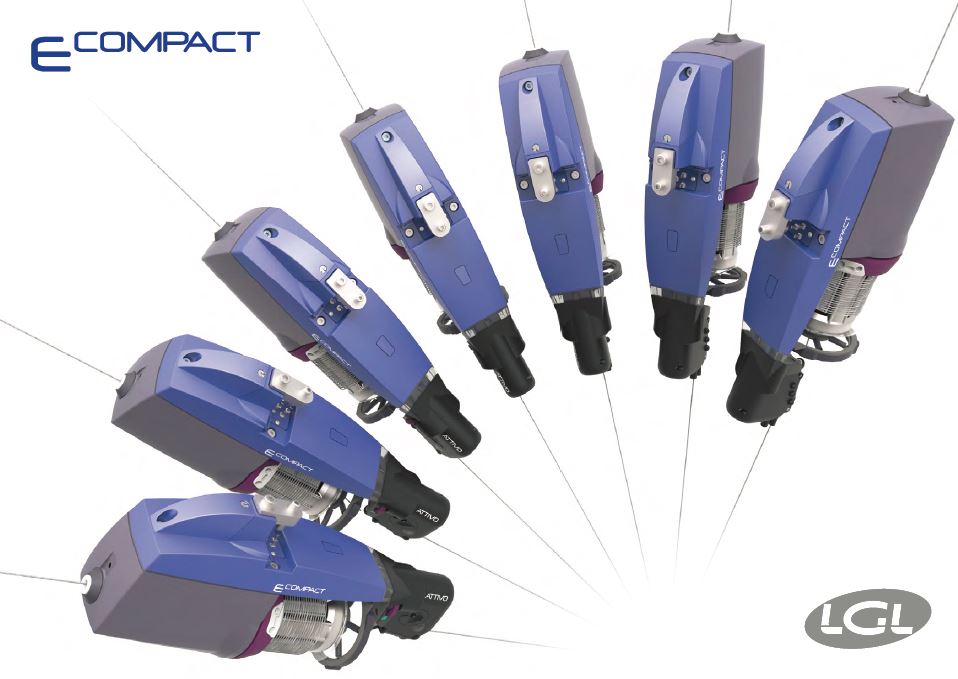

LGL Ecompact


LGL Ecompact

• Very compact dimensions
• Reduced weight
• Considerable power reduction (see graphic)
• "Yarn consumption" function : it measured and elaborates the yarn consumption of all feeds
• Z and/or S rotation, as needed
• ON/OFF switch, easily accessible
• Signaling lamp, visible from anywhere around the knitting machine
• Possibility to be installed in any desired position : vertical, inclined or horizontal

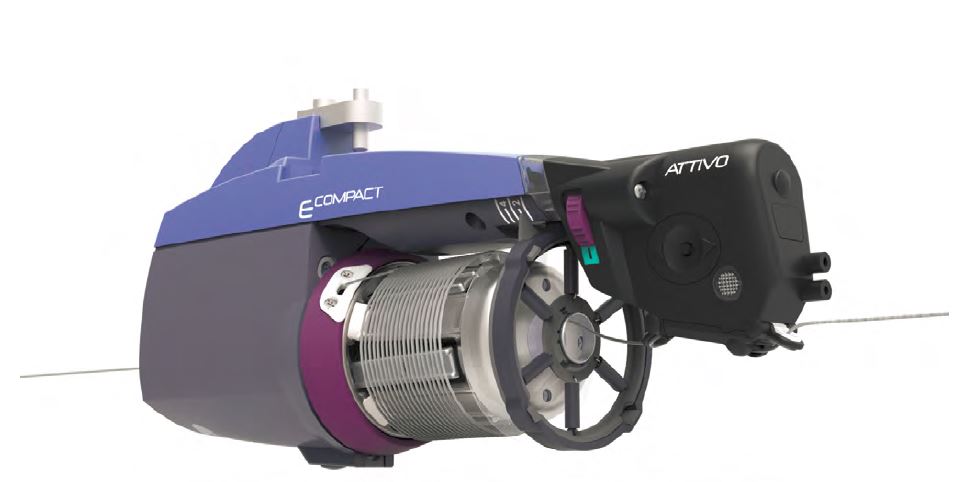

• Electronic brake "ATTIVO" (optional) : enables to program and keep constant the desired tension with full and empty bobbin.
• Yarn tension sensor, remotely programmable by laptop.
• Signaling lights are well visible from every angle
• Suitable for coarse, medium or fine yarns










Specification


Technical Data :

• Range of yarns : from 5 Den to 600 Den
• Spool body diameter : 69 mm
• Weight : 1,4 Kg
• Speed : up to 700mt/min
• Dimensions : 240x70x130mm (LxWxH)
