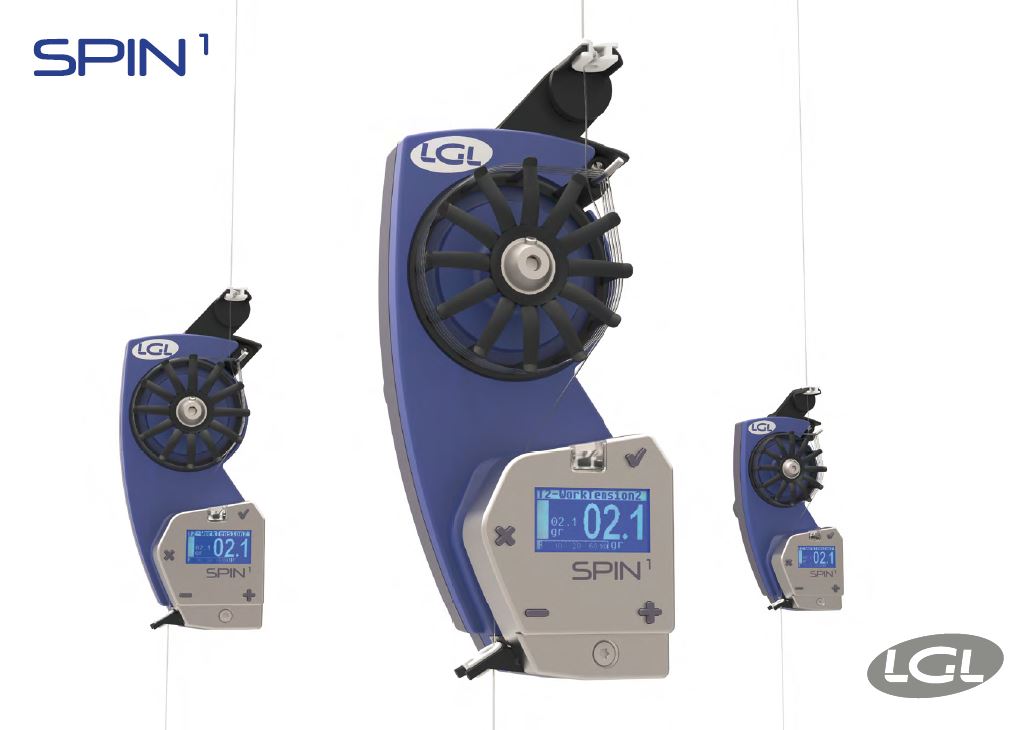

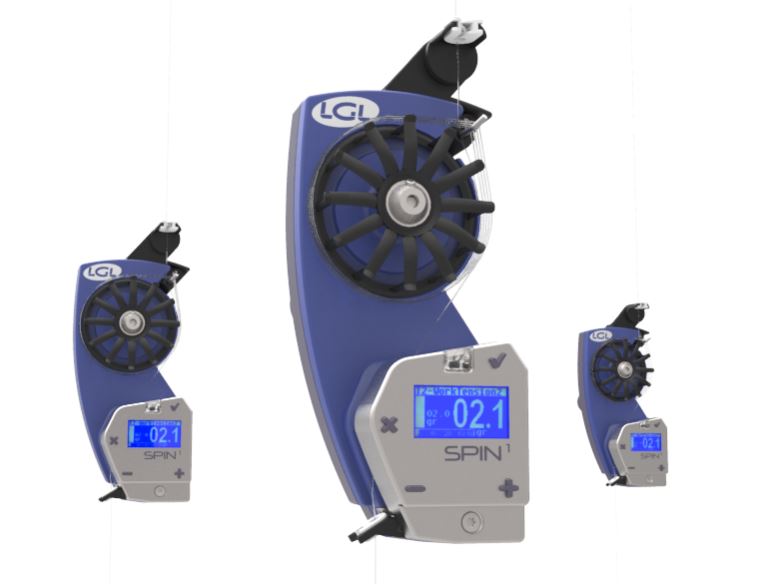

LGL Spin


LGL Spin

• It reacts quickly to speed changes without producing tension peaks
• Maximum torque available also at low speed
• Low power consumption
• Yarn measurement system
• Easy installation and use
• Serial and CAN BUS communication available
• Connections : with flat or single cable
• Ceramic tension sensor granting precision, accuracy and quick response
• Display : full graphic, high contrast
• Aluminium body






Specification


Technical Data :

• Range of yarns : bare and covered elastomeric yarns
• Spool body diameter : 43 mm
• Tension range : da 0.5 g a 100 g
• Weight :  350 g
• Maximum speed electronically limited : 1400 m/min a 24VDC
• Dimensions : 140x60x50 mm (LxWxH)
