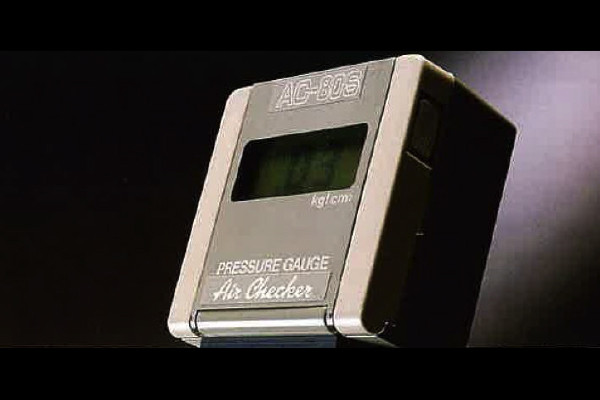

Airflow Checker


Air flow value in the guide of profile reed is checked by a measuring device so that air pressure is adjusted to an optimum level.

Air flow checker are machines to inspect reeds mounted on loom. With the characteristics handy type-light weight and easy to handle, have a digital indication easy to judge and can use air source set on loom, our product are suitable for you continuous reed maintenance




Specification


AIR FLOW DISPLAY



Function                    :           Air Flow Consumption for Air Jet Loom

Dimension                     :           ( W x L x H ) 110 x 205 x 200 mm

Type                           :           PF2A703H

Input power               :           100 – 220 VAC

Ampere                      :           0.6 Amp

Voltage Con              :           24 VDC

Measurement           :           125 L /min  to  3000 L/min

Display                       :           5 digit 7 segment LCD



PRESSURE DISPLAY



Function                    :           Monitoring Air Preasure

Type                           :           ISE30

Input power               :           100 – 220 VAC

Ampere                      :           0.2 Amp

Voltage Input                        :           5 VDC

Measurement           :           0 – 1 Mpa ( 0 – 10 Bar )

Display                       :           4 digit green or red light LCD
