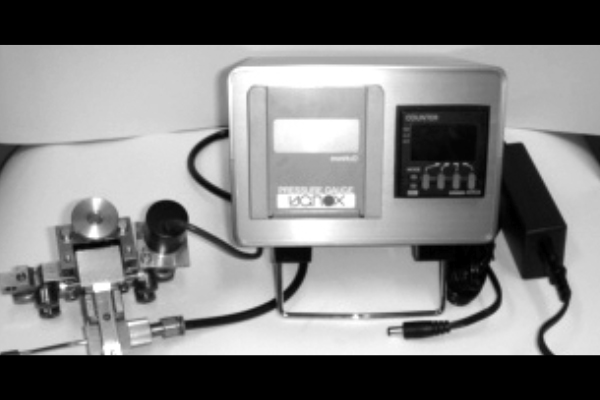

Sub Nozzle Measuring Instrument


It will be very important to make sure that all the instrument in the weft insertion system on your Air Jet loom perfom maximum before you run the machines.  Sub Nozzle Positioning Gauge is used to make easy setting on your Air Jet Loom weft insertion system by making sure that all of the sub nozzle perform and set well.

DISTANCE GAUGE indicates distance between sub nozzle and pitot tube in digital display.

DIGITAL PRESSURE GAUGE indicates air pressure from sub nozzle along the reed. You will see actual air flow on the machine.

IDEAL for sub nozzle setting in order to maximize sub nozzle performace which in turn resulting smooth weft insertion with minimum energy consumption


Specification


Power supply / Voltage / Power Consumption
AC100 - 240 V 50/60 Hz                                 9.4 VA
AC24 V 50/60 Hz / DC 12 - 24 V                    7.1 VA / 4.7 W
DC 12 - 24 V

Operating Voltage Range
85 to 110% of the rated voltage
(90 to 110% in the case of DC 12 - 24 V)

Ambient Temperature
-10 to +55ºC (when side-by-side mounting : -10 to +50ºC)
(avoid freezing or condensation)
Ambient humidity                  25 to 85%
Storage temperature             -25% to +65 ºC (avoid freezing or condensation)
Altitude                                  Max 2,000 m

Recommended external fuse
T2A, 250 VAC, time-lag, low-breaking capacity

Weight                                 Approximately  140 g (main unit only)

Control Output
Relay output                        250 VAC, 3 A (resistive load)
                                            30 VDC, 3 A (resistive load)
Translator Output                Open collector, 30 VDC max. 100 mA max.
                                            Residual voltage : 1.5 VDC max.
                                            (Effective value : approx. 1 VDC)
                                             Leak current : 0.1 mA or less

Electrical life of relay        100,000 operations
Mechanical life of relay     10,000,000 operations
External power supply       12 VDC, 100 mA
