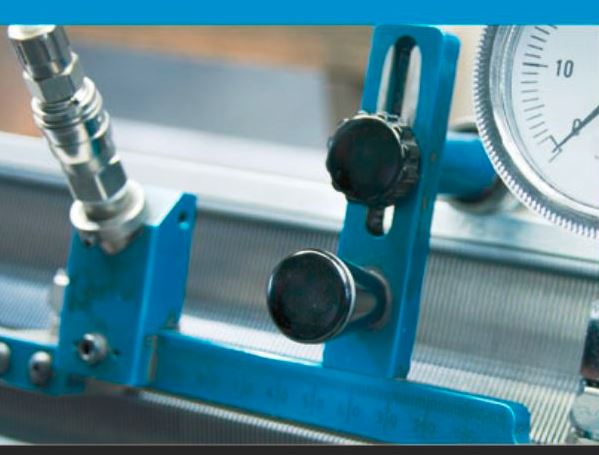

Palmetto's Dynamic Pressure Gauge kit gives you the flexibility to check Reed's Air Flow and Relay Nozzle settings right at the weave machine. Relay Nozzle adjusments and maintenance is easily performed with our unique quick disconnect coupler.
The kit includes 0 - 250 mbar gauge for calibrating Relay Nozzles and 0 - 60 mbar gauge for verifying the Air Flow.
Why Do You Need A Dynamic Pressure Gauge ?
Its essential the air flow profile of the reed, as influenced and established by the auxiliary relay nozzles, conform to optimal standards.
Periodic evaluation and calibration of the reed and loom are necessary since a variety of factors influence the air flow properties of the loom :
♦ Damaged auxiliary air jet nozzles
♦ Misaligned nozzle
♦ Poor air pressure supply
♦ Damaged solenoid control for the air jet nozzles
Any one of these factors can impact the weaving efficiency.
► Precision Air Pressure Regulator
Designed to control output pressure with accuracy of 0.1% and high repeatability
► Exclusive Height Adjustment
Supports a complete range of Reed heights from 100mm to 122mm
► Innovative Pitot Block Design
Designed to calibrate and verify the Air Flow & Relay Nozzles though-out the entire length of the Reed
Instrument for measuring the performance from sub nozzle
Measuring tool for air flow consumption of air jet looms.
